Cornerstone Auto Fab

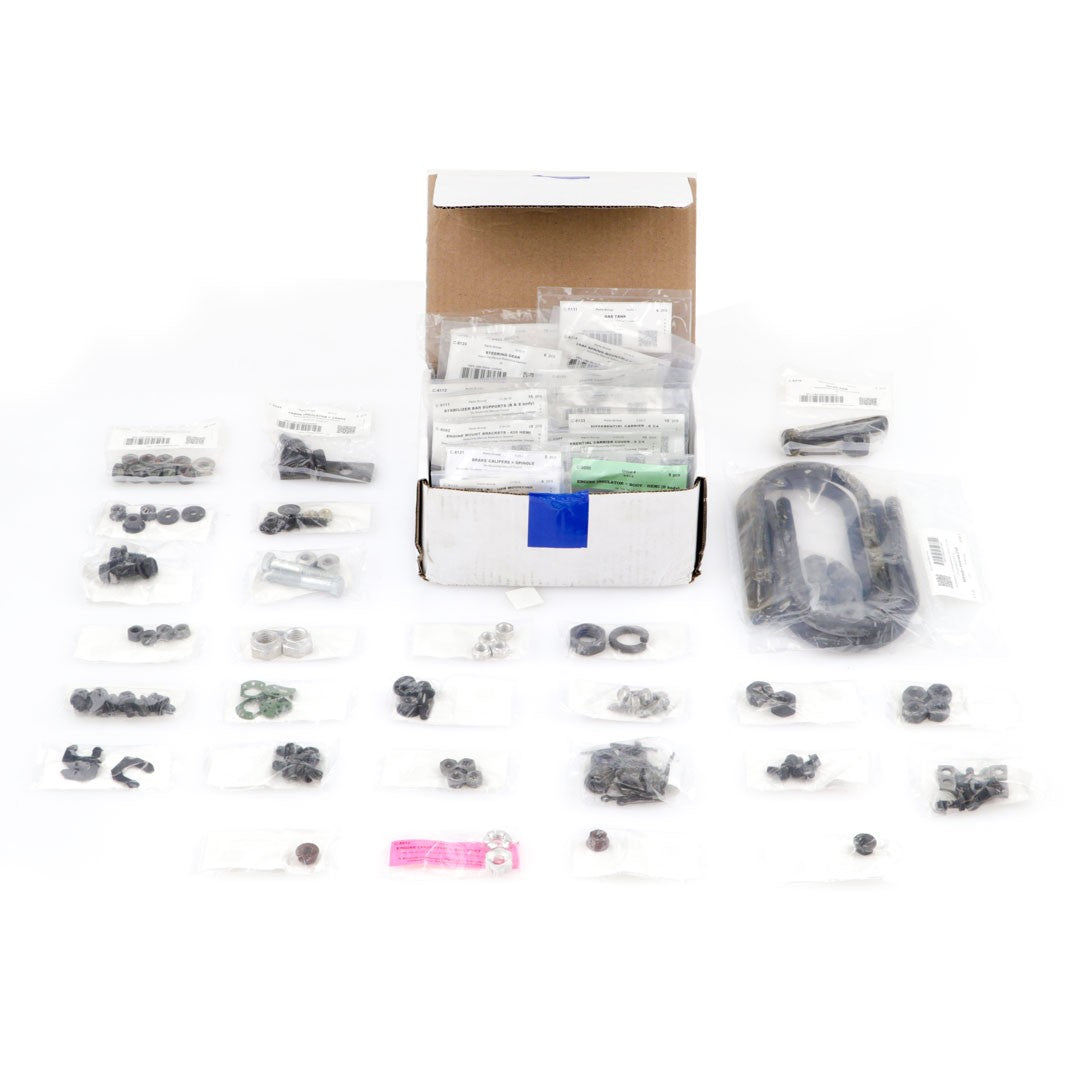

Master Chassis Hardware Kit (256pcs) - 66-67 Dodge Plymouth B-Body 383/440 w/ Disc Brakes

Master Chassis Hardware Kit (256pcs) - 66-67 Dodge Plymouth B-Body 383/440 w/ Disc Brakes

H-66B-BBDC

$949.98 CAD
$949.98 CAD
Sale Sold out

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.

Master Chassis Kit Includes:
Part# Application Notes Pcs
C-8027 Differential Carrier Cover - 9 3/4 3/8" HX Flng Bolts "E" 10
C-8084 Engine Insulator > Eng Brkt - exc HEMI HX Nuts, Coni WA's 4
C-8086 Engine Mount Brckets - 383/440 HX Bolts, 5/8 AF Nuts, Flat WA's 19
C-8088 Engine Insulator > Body - V8 exc HEMI HX Bolts "38", Coni WA's 4
C-8095 Trans Insulator > Crossmember Lock Nut 1
C-8104 Wheel Cylinders (2) w 1/4-20 Hx Flgn Screws 4
C-8105 Strut Rod > K-Frame (B & E Body) 5/8-11 Lock Nuts 4
C-8106 Driveshaft > Flange Straps, HX Bolts, Split WA's 10
C-8109 Shocks (Fr) - Lwr Mounting HX Bolts "TR" or "D", Lock Nuts 4
C-8112 Leaf Spring Mounting @ Front Hub Bolts, Coni Keps 16
C-8113 Shackles - Nuts Only HX Nuts 4
C-8115 Axle Housings > Springs 1/2-20 x 7.12 U-Bolts, Lock Nuts 12
C-8117 Suspension Bumper Brkt > 8 3/4 Axle Hx Coni Sems "Anchor" 2
C-8118 Suspension Bumpers (Rr) Hx Coni Sems "Anchor" 4
C-8119 Shocks (Rr) - Upr Mounting Hx Bolts, Lock Nuts 4
C-8120 Shocks (Rr) - Lwr Mounting Hx Nuts Only 2
C-8122 Brake Rotor Shields Hx Coni Sems 6
C-8124 Steering Gear (b body) Hi-Hx HD Bolts, Split WA's 6
C-8125 Brake Caliper Tube Brackets HX Coni Sems 4
C-8131 Gas Tank J-Bolts, Lock Nuts 4
C-8132 Differential Carrier - 8 3/4 Nuts w/ Nylon Pellet 10
C-8157 Suspension Bumper Brkt > 9 3/4 Axle Hx Coni Sems "Anchor" 3
C-8175 Suspension Bumpers (Fr) Hug-Lok Nuts 4
C-8177 Brake Drum Retainers 1/2" Stud, Green Push on Retain 6
C-8178 Steering Linkage Tri-slot Nuts, Cotter Pins 12
C-8191 Wheel Cylinders (2) w 5/16-18 5/16-18 HX Ext Sems 4
C-8202 Brake Cable Tension Adjuster Flange Lock Nut Only 1
C-8203 Proportioning Valve > Apron Red Flange Lock Nut 1
C-8208 Stabilizer Bar Center Supports HX Coni Sems, HX Nuts 8
C-8212 Control Arms (UPR) Cam Bolts, Washers, Nuts 16
C-8214 Leaf Spring Mounting @ Front "H" Marked Bolts, Marsden Nut 4
C-8215 Idler Arm "TR" Hex Bolt, Tri-Slot Nut, Pin 3
C-8216 K-Frame > Body Special Hex Coni Sems 4
C-8218 Trans Crossmember HX Bolts, Flat WA's, Coni Keps 12
C-8220 Trans Insulator > Trans HX Coni Sems 2
C-8222 Axle Retaining Nuts HX Lock Nuts, Flng Nuts 10
C-8224 Ball Joints w/ Disc Brakes HX Bolts, Sloted Nuts, Pins 12
C-8225 Brake Calipers > Spindle HX Bolts 4
C-8226 Pitman Arm Nut, Split WA 2
C-8228 Brake Hoses > Bracket Clips U-Clips 3
C-8229 Parking Brake Control > Body EXT Keps 3
C-8331 Master Cylinder EXt Keps 4
C-8333 Master Cylinder Support Plate Coni Keps, EXT Keps, Sealer 4
C-8335 Brake Booster EXT Keps 4
C-8338 Accelerator Pedal (B & E body) Coni Keps, Coni Sems 6
